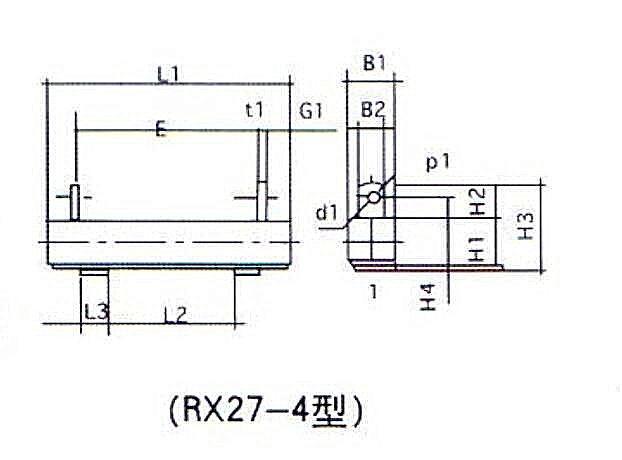

RX27-4
| Resistor Type | Power(W) | Resistance Range(Ω) | Dimension(mm) | ||||||||||||
| L | L2 | L3 | B1/H1 | B2 | H2 | H3 | H4 | P1 | E | G1 | t1 | d1 | |||
| RX27-4 | 10 | 0.51-2000 | 48 | 25 | 4.5 | 9.5 | 5 | 6 | 16.5 | 0.8 | 2.5 | 36 | 5.5 | 0.4 | 2 |
| 5 | 1-2400 | 48 | 25 | 7 | 12.5 | 6 | 7.5 | 21 | 1 | 3 | 34 | 6.5 | 0.5 | 2 | |
| 20 | 1-3000 | 63.5 | 25 | 7 | 12.5 | 6 | 7.5 | 21 | 1 | 3 | 49.5 | 6.5 | 0.5 | 2.5 | |
| 25 | 1.2-3600 | 63.5 | 25 | 8 | 16 | 7.5 | 12 | 29 | 1 | 3.5 | 46.5 | 8 | 0.5 | 3 | |
| 30 | 1.5-4300 | 75 | 40 | 10 | 1.9 | 7..5 | 10 | 30 | 1 | 3.5 | 56 | 9 | 0.5 | 3 | |
| 40 | 1.8-5600 | 90 | 40 | 10 | 1.9 | 7.5 | 10 | 30 | 1 | 3.5 | 71 | 9 | 0.5 | 3 | |
