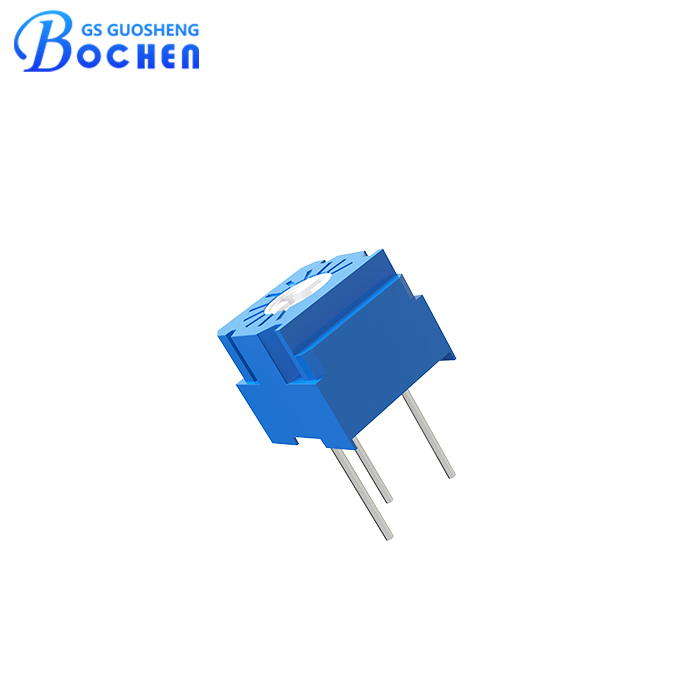

3323P1 1k 5k 10k Adjustable Resistor Cermet Trimmer Potentiometer

Short Description:

Description The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls. Feature Adjustable resistance. Compact design. Smooth operation. Durable construction. Versatile applications...

FOB Price: US $0.01 - 99/ Piece

Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc.

Supply Ability: 100000000 Pieces per Month

Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order.

Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc

Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc

Services: ODM, OEM

Send email to us Download as PDF

Product Detail

Product Tags

Description

The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls.

Feature

Adjustable resistance.
Compact design.
Smooth operation.
Durable construction.
Versatile applications.

Specification

Electrical Characteristics	Nominal Resistance Range	10Ω~5MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1%R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 megohms Min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Weld Heat Resistance	250℃, 10 Secs.
	Rated Power(300 volts max.)	70℃, 0.5W; 125℃, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	200 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

Packaging

Packaging Specification: 50 pieces/tube, 5000 pieces/carton.

Application

Audio equipment.
Consumer electronics.
Industrial controls.
Robotics and automation.
Power supplies.
Measurement and testing instruments.
Automotive electronics.
Telecommunications.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
