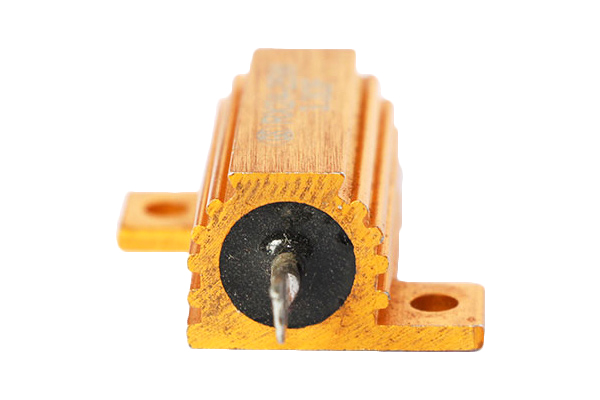

RX24-25W

Short Description:

Technical Specification Type Rated Power Dimensions(mm) Weight(g) Resistor Body HeatSink A max B L max H max C L L1 M N ∅1 ∅2 Surface Area(cm²) Thickness(mm) RX24 5 15.5 16 36.5 8 8.5 11.4 12 4.4 1.5 1.5 2.2 415 1 3 10(15) 19.5 21 40.5 10 11.2 14 16 5 2 2 2.5 415 6 20(15/25) 27 27 48 13 14.3 18.3 20 7 2 2 3.5 535 11 30(25) 34 29 55 15.5 16.3 25 22 7.3 2 2 3.5 535 18 50 50 30 72 15.5 16.3 0 20.5 7.3 2 2 3.5 995 30 RXG24 75/100 65.5 48 93.5 26 27 23.5 37 11.5 3.5...

FOB Price: US $0.01 - 99/ Piece

Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc.

Supply Ability: 100000000 Pieces per Month

Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order.

Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc

Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc

Services: ODM, OEM

Send email to us Download as PDF

Product Detail

Product Tags

Technical Specification
Type	Rated Power	Dimensions(mm)													Weight(g)
		Resistor Body											HeatSink
		A max	B	L max	H max	C	L	L1	M	N	∅1	∅2	Surface Area(cm²)	Thickness(mm)
RX24	5	15.5	16	36.5	8	8.5	11.4	12	4.4	1.5	1.5	2.2	415	1	3
	10(15)	19.5	21	40.5	10	11.2	14	16	5	2	2	2.5	415		6
	20(15/25)	27	27	48	13	14.3	18.3	20	7	2	2	3.5	535		11
	30(25)	34	29	55	15.5	16.3	25	22	7.3	2	2	3.5	535		18
	50	50	30	72	15.5	16.3	0	20.5	7.3	2	2	3.5	995		30
RXG24	75/100	65.5	48	93.5	26	27	23.5	37	11.5	3.5	M3	4.4	995	3	90
	100/150	98	48	126	26	27	35	37	11.5	3.5	M3	4.4	995		160
	150	130	48	158	26	27	52	37	11.5	3.5	M3	4.4	995		240
	200	92	73	132	45	46.5	35	58	21	5	M6	5.5	3750		420
	250	112	73	152	45	46.5	45	58	21	5	M6	5.5	4765		480
	300	130	73	170	45	46.5	51	58	21	5	M6	5.5	5780		580
	500	204	73	244	45	46.5	87	58	21	5	M6	5.5	5800		970

Main Characteristics
Type	Rated Power		Resistance Range(Ω)	Tolerance(%)	T.C.R.(×10^-6 /℃)	Voltage(V)
Type	With Shell	Without Shell	Resistance Range(Ω)	Tolerance(%)	T.C.R.(×10^-6 /℃)	Voltage(V)
RX24	5	3	0.01~1K	±1 ±5	±100 ±50	1000
	10(15)	8	0.01~1.5K
	20(15/25)	12.5	0.01~20K
	30(25)	15	0.01~27K
	50	20	0.01~33K
RXG24	75	45	0.01~39K			2000
	100	50	0.01~51K
	150	55	0.01~56K
	200	50	0.01~62K
	250	60	0.01~68K
	300	75	0.01~75K
	500	200	0.01~82K
