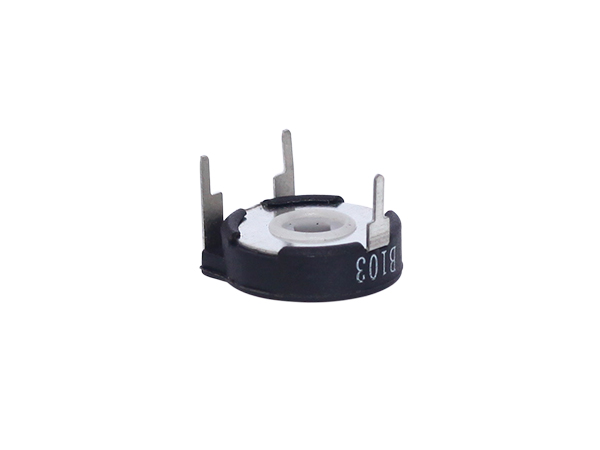

PT10

Short Description:

Potentiometer PT10 Electronic Characteristics Resistance Range 100ohm~2.2Mohm Resistance Taper B (linear) Total Resistance Tolerance R<1MΩ ±20% R≥1MΩ ±30% Rated Power 0.15W(50℃) Residual Resistance 20Ω Max Rotation of Noise ≤47mV Electrical Rotation Angle 220°±20° Max Operating Voltage 200V DC Mechanical Characteristics Total Rotation Angle 235°±5° Rotation Torque 40-200gf.cm Stop Torque 5kgf.cm Push Pull Strength ≥10N &n...

FOB Price: US $0.01 - 99/ Piece

Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc.

Supply Ability: 100000000 Pieces per Month

Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order.

Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc

Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc

Services: ODM, OEM

Send email to us Download as PDF

Product Detail

Product Tags

Potentiometer PT10
Electronic Characteristics	Resistance Range	100ohm~2.2Mohm
	Resistance Taper	B (linear)
	Total Resistance Tolerance	R<1MΩ ±20% R≥1MΩ ±30%
	Rated Power	0.15W(50℃)
	Residual Resistance	20Ω Max
	Rotation of Noise	≤47mV
	Electrical Rotation Angle	220°±20°
	Max Operating Voltage	200V DC
Mechanical Characteristics	Total Rotation Angle	235°±5°
	Rotation Torque	40-200gf.cm
	Stop Torque	5kgf.cm
	Push Pull Strength	≥10N
