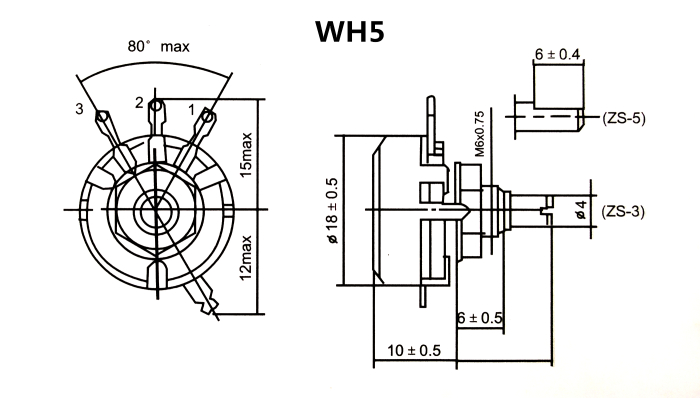

WH5

Short Description:

Total Rotational Angle 250°±5° Rotational Torque 0.3~2N.cm Stop Strength 40.cm Total Resistance 1K ohm ~ 2.2M ohm Resistance Tolerance ±20% Resistance Taper A B C Taper Rated Power 0.1W Max. Operating Voltage 150V AC Operating Temperature 60℃ Insulation Resistance ≥100M ohm at DC 500V Rotational Noise ≤47mV Rotational Life 10,000 cycles

FOB Price: US $0.01 - 99/ Piece

Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc.

Supply Ability: 100000000 Pieces per Month

Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order.

Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc

Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc

Services: ODM, OEM

Send email to us Download as PDF

Product Detail

Product Tags

Total Rotational Angle	250°±5°
Rotational Torque	0.3~2N.cm
Stop Strength	40.cm
Total Resistance	1K ohm ~ 2.2M ohm
Resistance Tolerance	±20%
Resistance Taper	A B C Taper
Rated Power	0.1W
Max. Operating Voltage	150V AC
Operating Temperature	60℃
Insulation Resistance	≥100M ohm at DC 500V
Rotational Noise	≤47mV
Rotational Life	10,000 cycles
